$2,899.00–$3,099.00Price range: $2,899.00 through $3,099.00

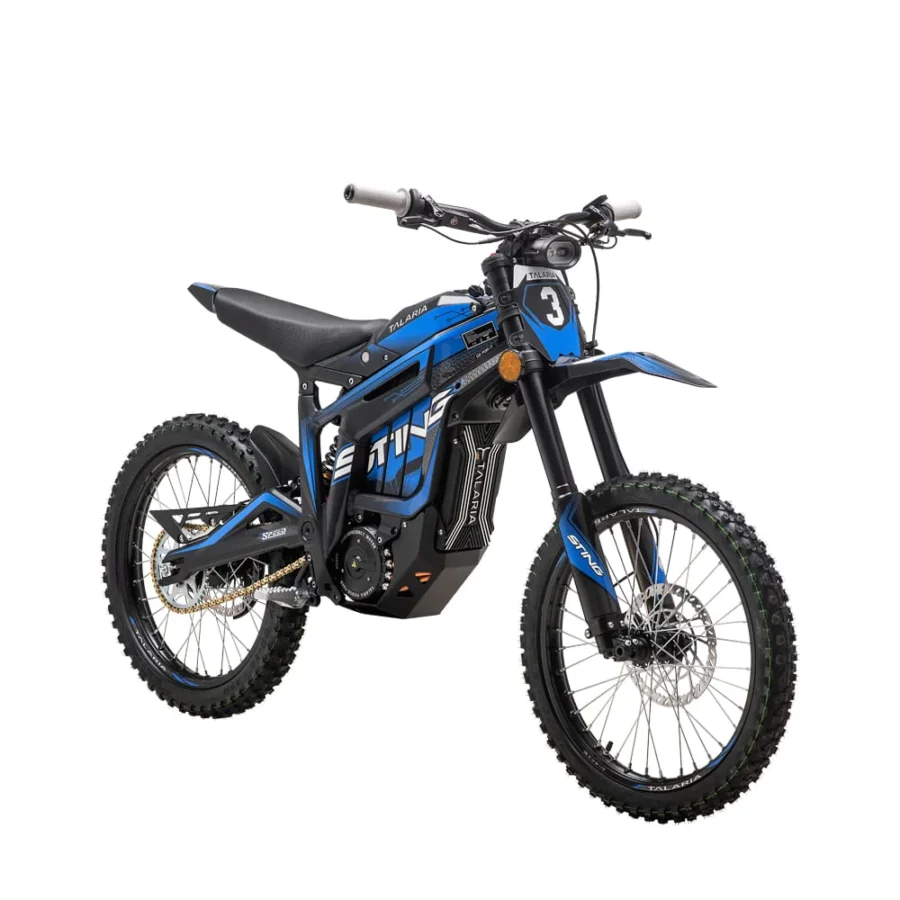

Mid-range 60V Sting with an IPM motor rated 4,000 W continuous and 8,000 W peak, 53 mph (85 km/h) top speed, and a 60V / 45Ah LG 21700 pack holding 2.7 kWh — up to 75 mi (120 km) at a 16 mph cruise.
The Sting R MX4 sits between the MX3 and the higher-voltage bikes, and its numbers are the ones most riders end up comparing against. The high-efficiency DC IPM motor is rated 4,000 W continuous, 8,000 W peak, and 45 N·m at the shaft, managed by a field-oriented-control unit with four levels of adjustable regen. Top speed is 53 mph (85 km/h).
Range is the standout figure: the 60V / 45Ah LG 21700 pack stores 2.7 kWh and will cover up to 75 mi (120 km) held at 16 mph. A full charge takes roughly 3 hours.
The frame is forged 6061-T6 aluminum alloy, curb weight is 66 kg (145 lb) and maximum load is 100 kg (220 lb). Seat height is 840 mm (33.1 in) on a 1,250 mm (49.2 in) wheelbase with 300 mm (11.8 in) of ground clearance. Suspension is adjustable at both ends — FastAce or Talaria factory fork up front, FastAce, HT or Talaria factory shock at the rear. Brakes are 4-piston hydraulic on 220 mm rotors with a rear disc guard.
Wheels are 19-inch spoked aluminum wearing 70/100-19 front and 80/100-19 rear off-road tires. A digital dash covers speed, battery and odometer, and an LED headlight is fitted. Choose L1E or MX off-road trim, in Black or Blue.
The Sting R MX4 reaches 53 mph (85 km/h). It makes 8 kW peak from an IPM mid-drive on the 60V platform, a step up from the 6 kW MX3.
How long does a Talaria Sting R battery last on one charge?
Up to 75 miles on a steady cruise from the 45Ah LG 21700 pack — the longest range in the entire Talaria line-up. Hard riding, cold weather and a heavier rider will all reduce that figure.
What is the difference between the MX3 and the Sting R MX4?
Same 60V platform, more of everything: 8 kW instead of 6 kW, 53 mph instead of 47, and a 45Ah pack instead of 38.4Ah. The MX4 is the one to buy if range is what limits your rides.
How long does it take to charge?
Roughly 2.5–3 hours on the 12A fast charger. The pack is removable for indoor charging.
Version
L1E Street Legal, MX Off Road
Color
Black, Blue
Motor type
High-efficiency DC IPM (Interior Permanent Magnet)
Continuous power
4,000 W
Peak power
8,000 W (8 kW)
Motor torque
45 N·m
Top speed
53 mph (85 km/h)
Controller
FOC (Field-Oriented Control)
Battery
60V / 45 Ah · LG 21700 Lithium-Ion
Total energy
2.7 kWh
Max range
Up to 75 mi (120 km) at 16 mph cruise
Charge time
~3 hours
Frame
Forged 6061-T6 aluminum alloy
Curb weight
66 kg (145 lb)
Max load
100 kg (220 lb)
Seat height
840 mm (33.1 in)
Wheelbase
1,250 mm (49.2 in)
Ground clearance
300 mm (11.8 in)
Front suspension
Adjustable FastAce / Talaria factory fork
Rear suspension
Adjustable FastAce / HT / Talaria factory shock
Brakes (F/R)
4-piston hydraulic, 220 mm rotor + rear disc guard
Wheels
19″ spoked aluminum
Tires
70/100-19 front · 80/100-19 rear off-road
Display
Digital dash with speed, battery, odometer
Regen
4-level adjustable
Lighting
LED headlight
